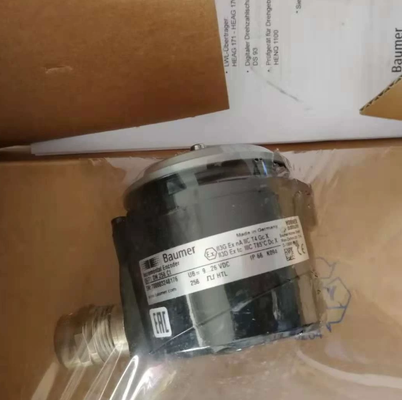

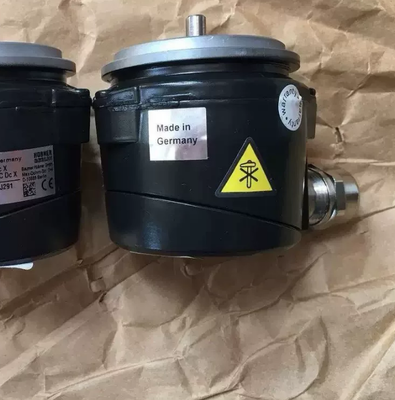

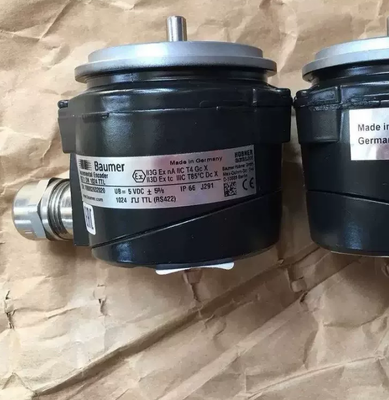

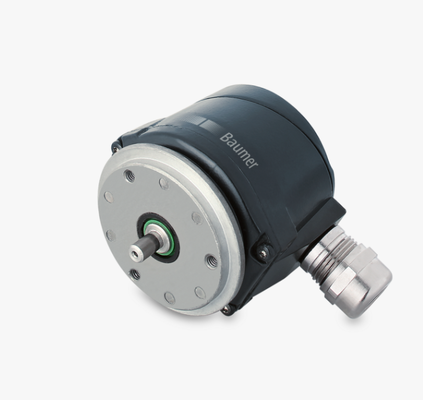

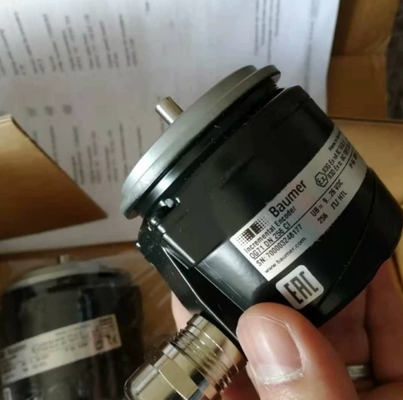

New Original BAUMER OG71 DN 256 CI Incremental Encoder with Optical Sensing IP66 Protection and 10000 rpm Operating Speed

  • New Original BAUMER OG71 DN 256 CI Incremental Encoder with Optical Sensing IP66 Protection and 10000 rpm Operating Speed
  • New Original BAUMER OG71 DN 256 CI Incremental Encoder with Optical Sensing IP66 Protection and 10000 rpm Operating Speed
  • New Original BAUMER OG71 DN 256 CI Incremental Encoder with Optical Sensing IP66 Protection and 10000 rpm Operating Speed
  • New Original BAUMER OG71 DN 256 CI Incremental Encoder with Optical Sensing IP66 Protection and 10000 rpm Operating Speed
  • New Original BAUMER OG71 DN 256 CI Incremental Encoder with Optical Sensing IP66 Protection and 10000 rpm Operating Speed
Luogo di origine Germania
Marca BAUMER
Numero di modello BAUMER OG71
Quantità di ordine minimo 2
Prezzo USD＄550
Imballaggi particolari imballaggio originale
Tempi di consegna In magazzino
Termini di pagamento L/C, D/A, D/P, T/T, Western Union
Capacità di alimentazione 10 pz
Dettagli
Evidenziare

Baumer OG71 rotary encoder

,

incremental encoder with warranty

,

Baumer Hübner rotary encoder
Lasciate un messaggio
Descrizione di prodotto
Technical data - electrical ratings
Voltage supply
  • 9...26 VDC
  • 5 VDC ±5 %
Consumption w/o load
  • ≤100 mA
Pulses per revolution
  • 100 … 1024
Phase shift
  • 90 ° ±20°
Duty cycle
  • 40…60 %
Reference signal
  • Zero pulse, width 90°
Sensing method
  • Optical
Output frequency
  • ≤120 kHz
Output signals
  • A, B, C + inverted
Output stages
  • HTL
  • TTL/RS422
Interference immunity
  • EN 61000-6-2
Emitted interference
  • EN 61000-6-3
Approval
  • CE
  • UL approval / E217823
Technical data - mechanical design
Size (flange)
  • ø58 mm
Shaft type
  • ø6 mm solid shaft
Admitted shaft load
  • ≤30 N axial
  • ≤40 N radial
Flange
  • Synchro flange
Protection EN 60529
  • IP 66
Operating speed
  • ≤10000 rpm (mechanical)
Operating torque typ.
  • 1 Ncm
Rotor moment of inertia
  • 25 gcm²
Material
  • Housing: aluminium die-cast
  • Shaft: stainless steel
Operating temperature
  • -20...+85 °C
Resistance
  • IEC 60068-2-6
  • Vibration 10 g, 10-2000 Hz
  • IEC 60068-2-27
  • Shock 300 g, 6 ms
Explosion protection
  • II 3 G Ex ec IIC T4 Gc X (gas)
  • II 3 D Ex tc IIIC T85°C Dc X (dust)
  • (only with option ATEX)
Connection
  • Connecting terminal
Weight approx.
  • 300 g
