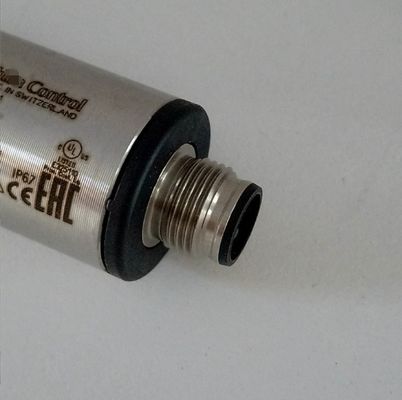

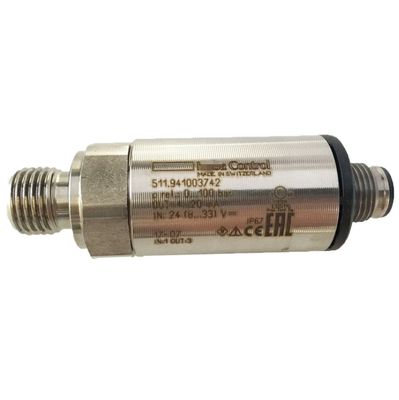

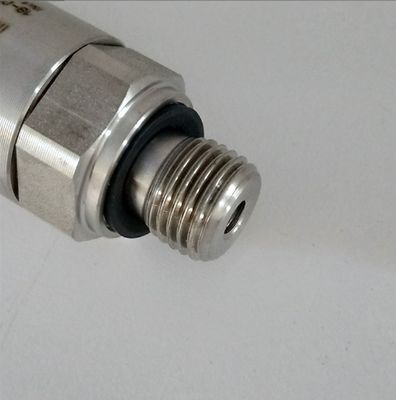

Huba Control 511 Pressure Sensor Transmitter 511.941003742 511.941003572 0-100bar 4-20MA

  • Huba Control 511 Pressure Sensor Transmitter 511.941003742 511.941003572 0-100bar 4-20MA
  • Huba Control 511 Pressure Sensor Transmitter 511.941003742 511.941003572 0-100bar 4-20MA
  • Huba Control 511 Pressure Sensor Transmitter 511.941003742 511.941003572 0-100bar 4-20MA
  • Huba Control 511 Pressure Sensor Transmitter 511.941003742 511.941003572 0-100bar 4-20MA
Luogo di origine Germania
Marca HUBA
Certificazione /
Numero di modello 511.941003742
Quantità di ordine minimo 1 pezzo
Prezzo USD 70/PC
Imballaggi particolari Imballaggio originale
Tempi di consegna 5 giorni lavorativi
Termini di pagamento T/T
Capacità di alimentazione 1000pc/mese

Contattimi gratis campioni e buoni.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se avete di preoccupazione, forniamo la guida in linea di 24 ore.

x
Dettagli
Nome Trasmettitore di pressione 511 Campo di misurazione della pressione -1...600bar
Tempo di risposta <2 ms (tip. 1 ms) Cambiamento di carico <100Hz
media Mezzo di processo; Gas MOQ 1 pezzo
Evidenziare

Huba Control 511 pressure transmitter

,

Precision pressure sensor 4-20mA

,

100bar pressure transmitter with warranty
Lasciate un messaggio
Descrizione di prodotto
Pressure transmitter 511
The compact pressure transmitters of Type 511 meet the highest demands in terms of robustness, accuracy, temperature stability, and EMC properties. They are therefore suitable for use in a wide range of industrial applications.
  • Compact and robust design for maximum operational safety
  • No media leakage when exceeding burst pressure
  • Minimal temperature influences on accuracy
  • Excellent EMC properties
  • Time-saving, fast customer-side cable assembly with quick cable screw connection



















Ambient condition
Ambient temperature
<125 °C
Material
Housing
Stainless steel 1.4305 (AISI 303)
Measuring element with media contact
Ceramic Al2O3 (96 %)
Pressure connection with media contact
Stainless steel 1.4305 (AISI 303)
Media stop system with media contact
PPS
Sealing material with media contact
FPM; EPDM; NBR; FPM spez.
Electrical data
Current consumption
<20 mA
Inverse-polarity protection
Short-circuit and reverse polarity protected. Each connection against each other with max. supply voltage.
Insulation voltage
500; 1000 VDC
Electrical connection
Cable 1.5 m; Cable quick connector; AMP connector (Junior Power Timer); M12x1 connector plastic thread; M12x1 connector metal thread; Connector DIN EN 175301-803-C (industry standard 9.4 mm)
Installation guide
Installation orientation
any
Approval
EMC compatibility
CE-compliant in accordance with EN 61326-2-3
UL
according to standard 61010-1
Shock according to IEC 60068-2-27
100 g, 11 ms half sine wave, all 6 directions. Free fall from 2 m onto concrete (6x).
Permanent shock according to IEC 60068-2-29
40 g over 6 ms, 1000x all 3 directions.
Vibration according to IEC 60068-2-6
20 g, 2 ... 2000 Hz with amplitude ± 15 mm, 1 octave / minute in all 3 directions, 50 continuous loads.
